CM15P

CM15P

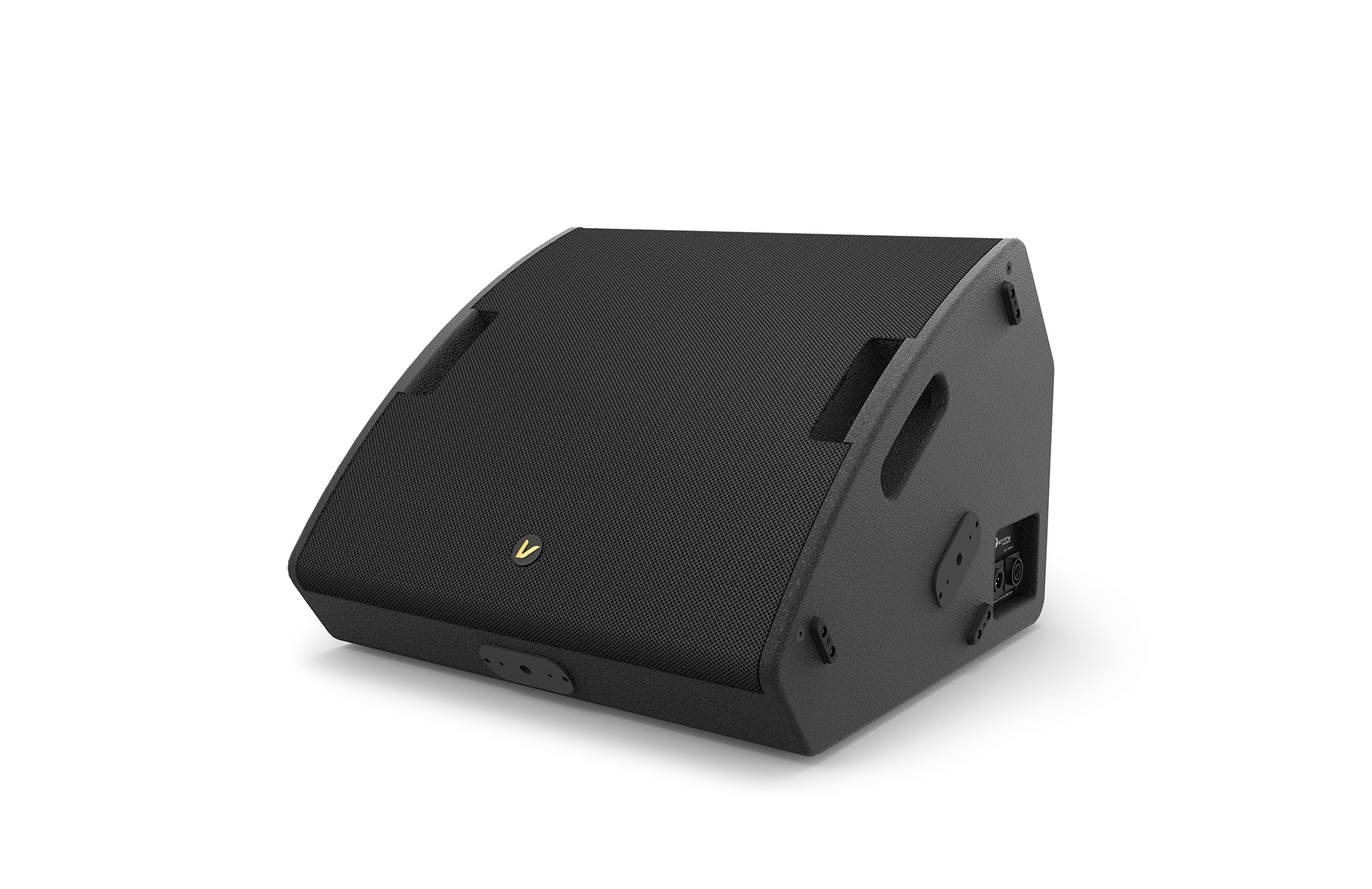

The CM15P is an passive coaxial system designed as a reference stage monitor. The enclosure features a 3″ diaphragm compression driver coaxially-loaded by a low frequency transducer in a bass-refex cabinet.
It provides a stage monitoring angle setting of with regard to vertical or thanks to its built-in risers for special narrow all applications, the CM15P can be pole-mounted using the integrated socket or down and tilted in various orientations using its rigging accessories.
The CM15P combines all the qualities of a reference stage monitor. It offers power (SPL) in beamwidth, an excellent acoustic isolation with its narrow ellipsoid directivity of x, a high immunity to feedback, an ultra-low profile and low weight for integration and handling, a rugged build and an active design with low latency preset. In addition, sound designers can take advantage of its directivity for narrow all applications.
The CM15P can be pole-mounted using the integrated socket. Other deployments such as wall-mounted, ceilingmounted or down are quick and easy, with a complete range of rigging accessories that offer multiple set­up options and various orientations.


Specifications

Model CM15P
Power handling capacity/peak 800W(Program)/1600W (peak 10ms)
Frequency response 45~20kHz (-10dB)
Maximum SPL(pink noise,1W,1m) 134dB (processed) *
Nominal Impedance
Coverage in monitor use 40°x 60°HF-horn, rotatable
LF Driver 1 x 15″cone driver
Voice Coil 3″
HF driver 1×1.4″ coaxial exit with 3″ diaphragm neodymium
Connector 3x NEUTRIK® NL4 SPEAKON® parallel INPUT/OUTPUT:+1/-1; LINK: +2/-2
Cabinet CNC made 15mm birch plywood, Front: coated steel grille, Finish: black polyurea spot spray.
Product Dimensions(mm) W550 x H418 x D550
Package Dimensions(mm) W650 x H510 x D660
N.W/G.W 29kg/35kg

Remark:
* Peak level at 1m under half space conditions using pink noise with crest factor 4.
Verity Audio reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.

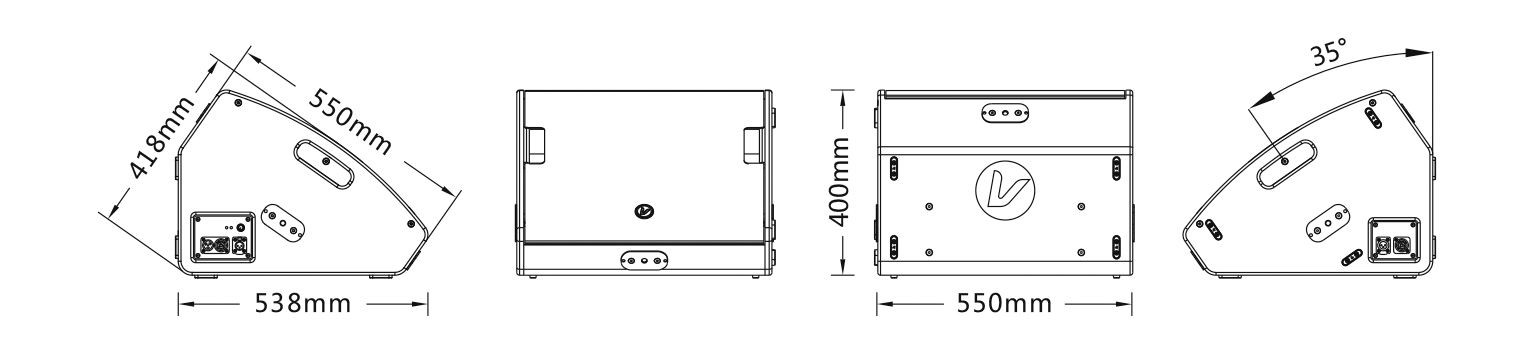

Dimensions

CM15P
