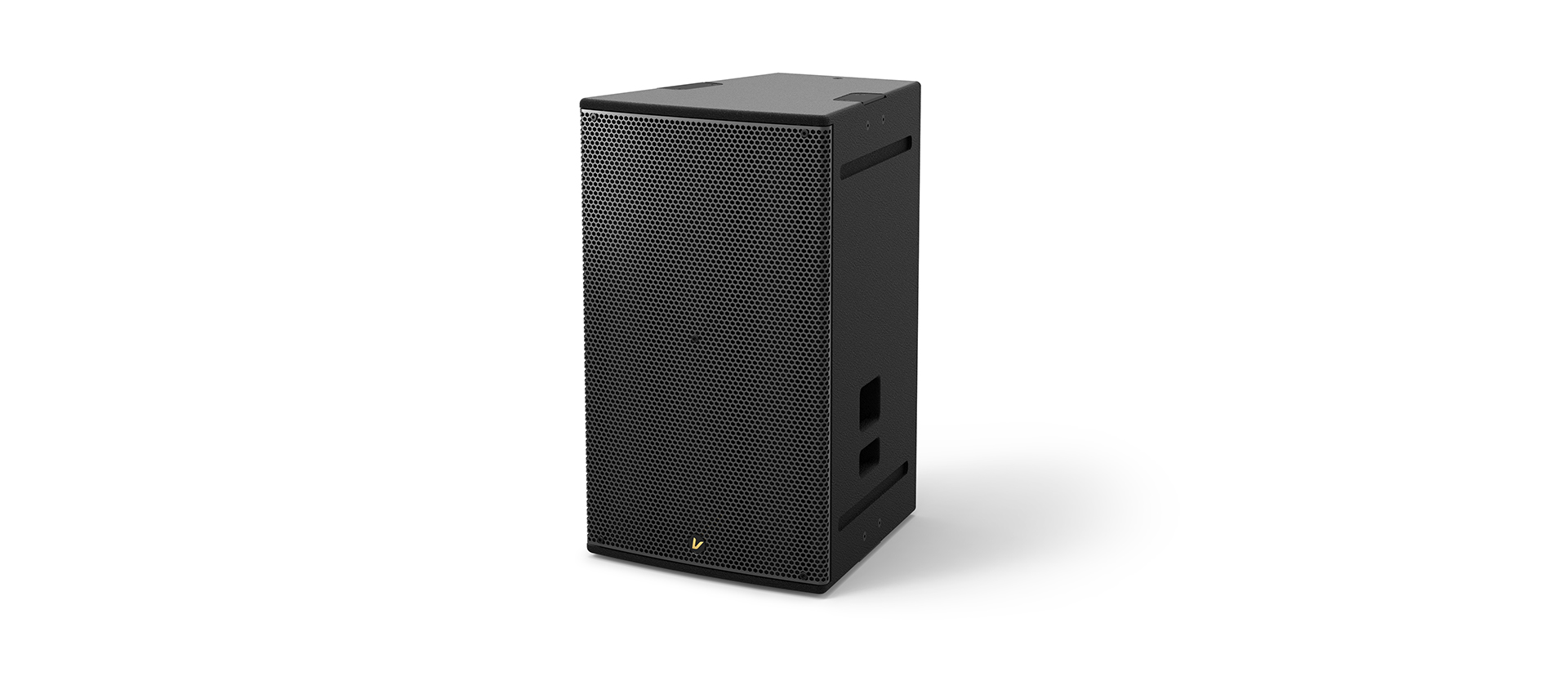

EVO15 Gold
The EVO15 Gold are high performance passive 2-way loudspeakers.
Employing a single 15″ driver in a bass-reflexenclosure of installed sound applications. Designs using a 1.4″exit driver and large horns for accurate pattern control. They provide rotatable dispersion characteristics of 60° x 75° .
With a frequency response extending from 40Hz to 20kHz (processed), the cabinets can be used as full range systems or supplemented by different subwoofers of the VS-series.
The enclosures are constructed from marine plywood with an impact resistant black polyurea spot spray finish. The fronts of the cabinets are protected by a rigid metal grill backed .
Specifications
| Model | EVO15 Gold |
| Power handling capacity/peak | 1400W(Program)/2800W (peak 10ms) |
| Frequency response | 40~20kHz (processed) |
| Maximum SPL | 132dB (processed) * |
| Nominal Impedance | 4Ω |
| Coverage | 60°× 75°(15°+ 60°)HF-horn,vertical asymmetry, rotatable |
| LF Driver | 1 x 15″cone driver |
| Voice Coil | 4″ |
| HF driver | 1×1.4″ exit with 3″ diaphragm neodymium |
| Connector | 2x NEUTRIK® NL4 SPEAKON® parallel INPUT/OUTPUT:+1/-1; LINK: +2/-2 |
| Cabinet | CNC made 15mm birch plywood, Front: coated steel grille, Finish: black polyurea spot spray. |
| Product Dimensions(mm) | W450 x H746 x D500 |
| Package Dimensions(mm) | W613 x H562 x D870 |
| N.W/G.W | 40kg/50kg |
| The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products. | |
Remark：
* Peak level at 1m under half space conditions using pink noise with crest factor 4.
Verity Audio reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
Dimensions
EVO15 Gold |
