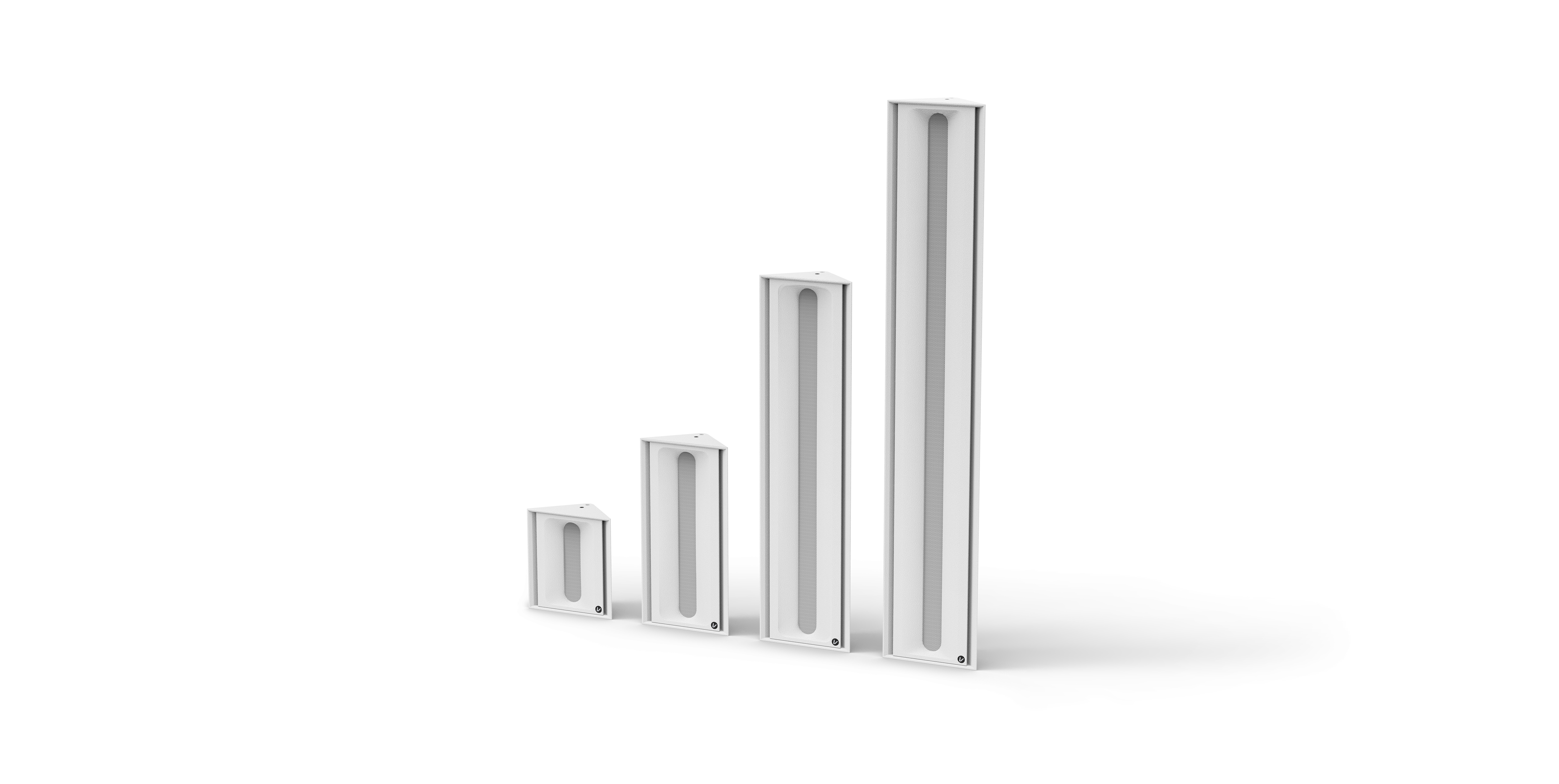

G series

Environment-friendly invisible column speaker

_Integrated with architectural lines, Harmonized with architectural style
_Full range European neodymium driver
_90 ° wall angle installation

Features

• ■ The G series uses a circular waveguide to control the diffusion angle of sound waves, allowing the sound beam to focuse with high gain within a specified angle. After fully utilizing sound effciency, sound can also be projected onto designated coverage areas to meet the needs of engineering sound coverage.
• ■ The 90° right angle back design of the G series is 100% aligned with the wall angle of the building, allowing the speaker to integrate with the environment after installation. Painting the box with wall like paint. The entire speaker can be hidden within the building, making it an excellent environmentally friendly sound reinforcement speaker.

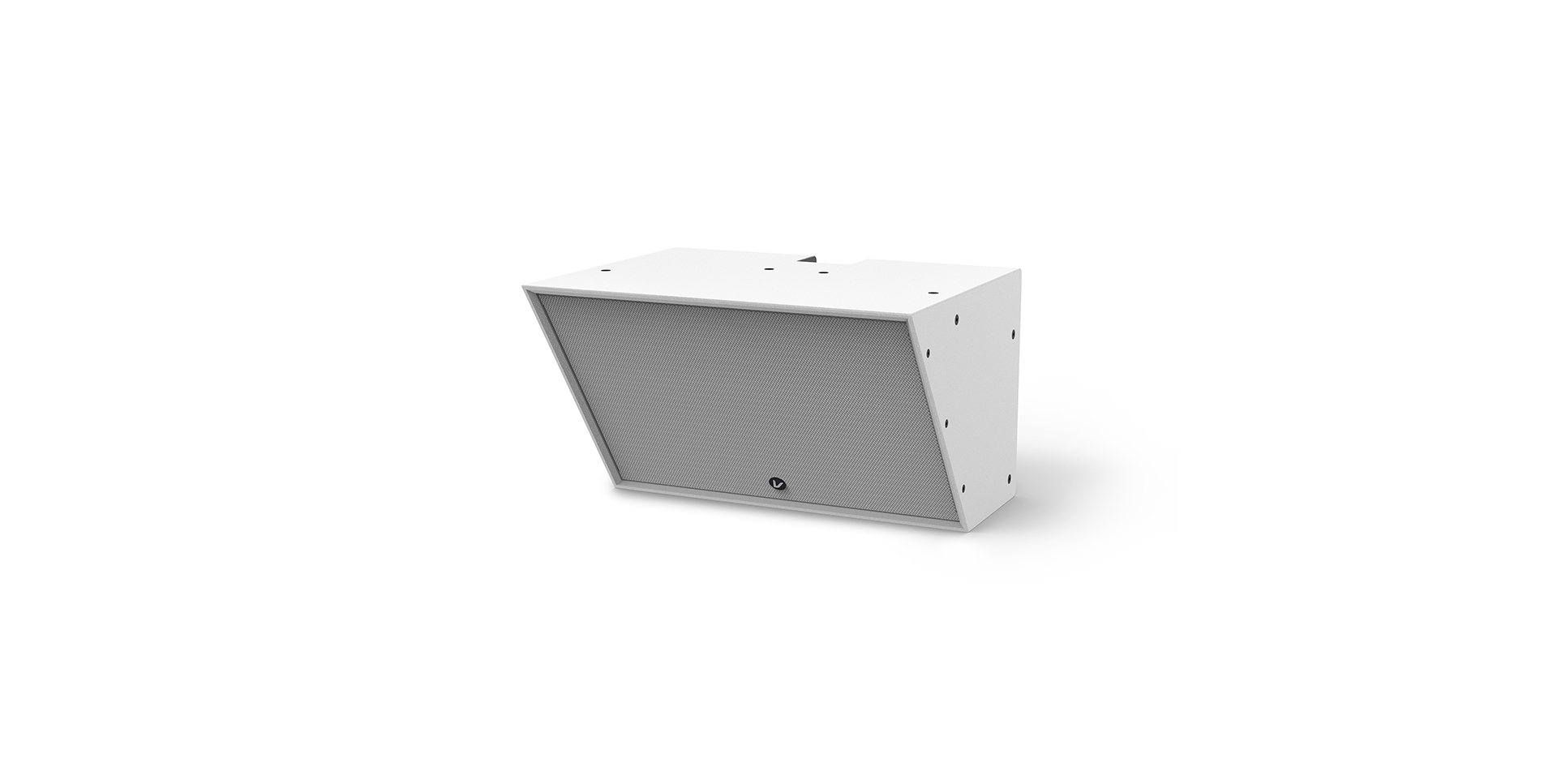

GE series

Environment-friendly invisible coaxial speaker

_Integrated with architectural lines, Harmonized with architectural style
_-35 ° downward sloping panel design
_90 ° ceiling wall angle installation

Features

• ■ The GE series speaker is a groundbreaking product developed after extensive investigation of the design and installation methods of all similar speakers in today’s applications.
• ■ The GE series speakers are designed with a single coaxial full range driver and no auxiliary subwoofer. This results in zero phase distortion, a very compact box, and very high sensitivity.
• ■ The GE series speakers are designed with a 90 ° intersection angle between the top cover and back panel. This shape perfectly matches the angle between the wall and ceiling, allowing the GE series speaker perfectly fit into the space between the wall and ceiling, harmoniously integrating into the entire building space.
• ■ The GE series features a downward sloping panel with an angle of -35 °. This is a golden value. This -35 ° angle, combined with the horn dispersion angle of the coaxial driver, can enable the GE series to meet the usage requirements of 70% of the applications, and the audiences are able to listen a sound of full range no matter standing or sitting down. In order to cope with more special applications, the GE series mounting bracket also provides a simple angle adjustment structure that can adjust a larger downward tilt angle. The GE series, when paired with this bracket, can almost 100% meet the sound coverage requirements of all application sites. When adjusting the coverage angle of traditional rectangular speakers, an L-shaped bracket must be used to tilt the entire box downwards. That way, the already large box will float out of the wall like a suspended object, making it feel very abrupt and blocking the view, even damaging the overall decoration of the building.
• ■ The surface of the GE series speakers is made of advanced moisture-proof and wear-resistant polyurea spraying materials, and the color and surface texture are very similar to most wall coatings or decoration materials, making the speaker integrated with the environment, and the entire speaker seems to be hidden in a building. We call this environmentally friendly design.

Specifications

Remark：
* Peak level at 1m under free field conditions using pink noise with crest factor 4.

Dimensions

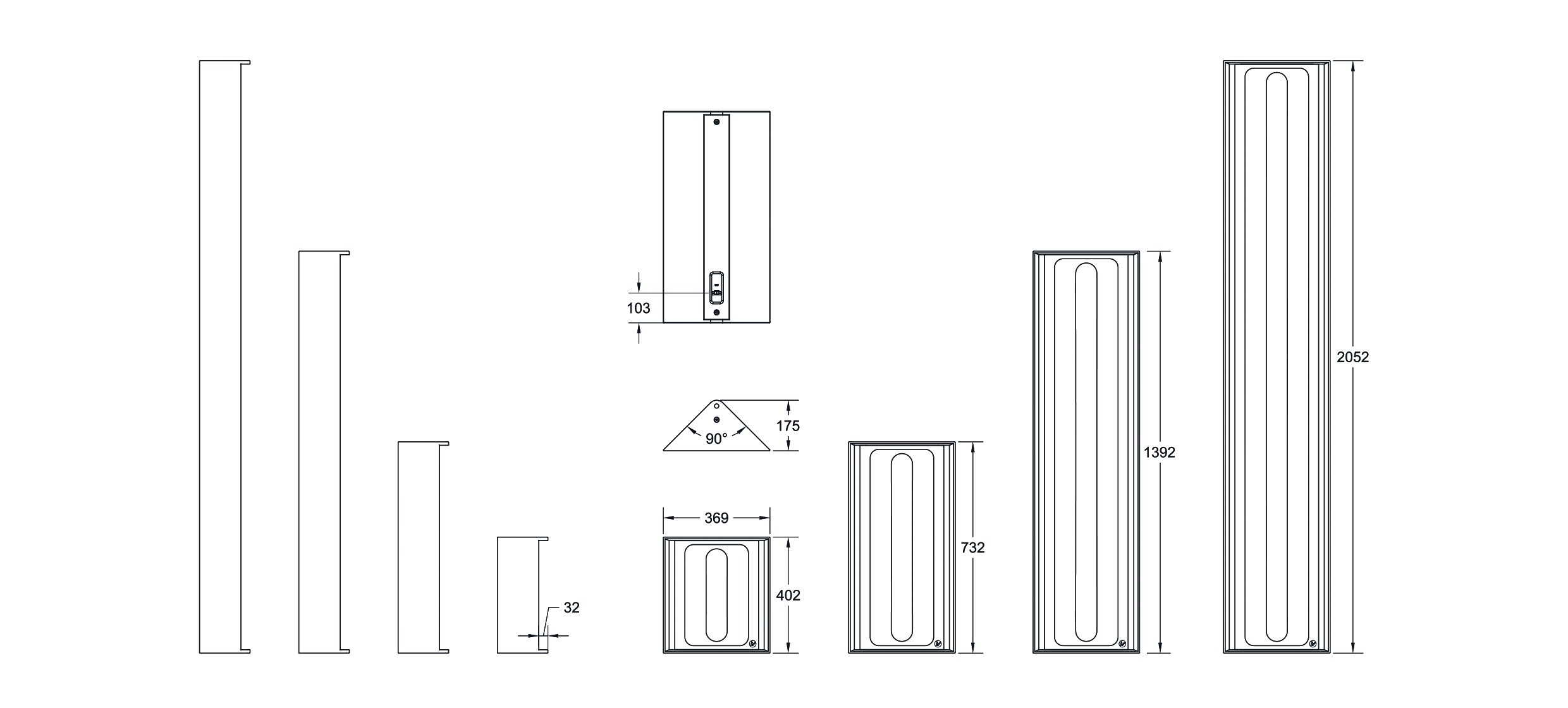

G serie

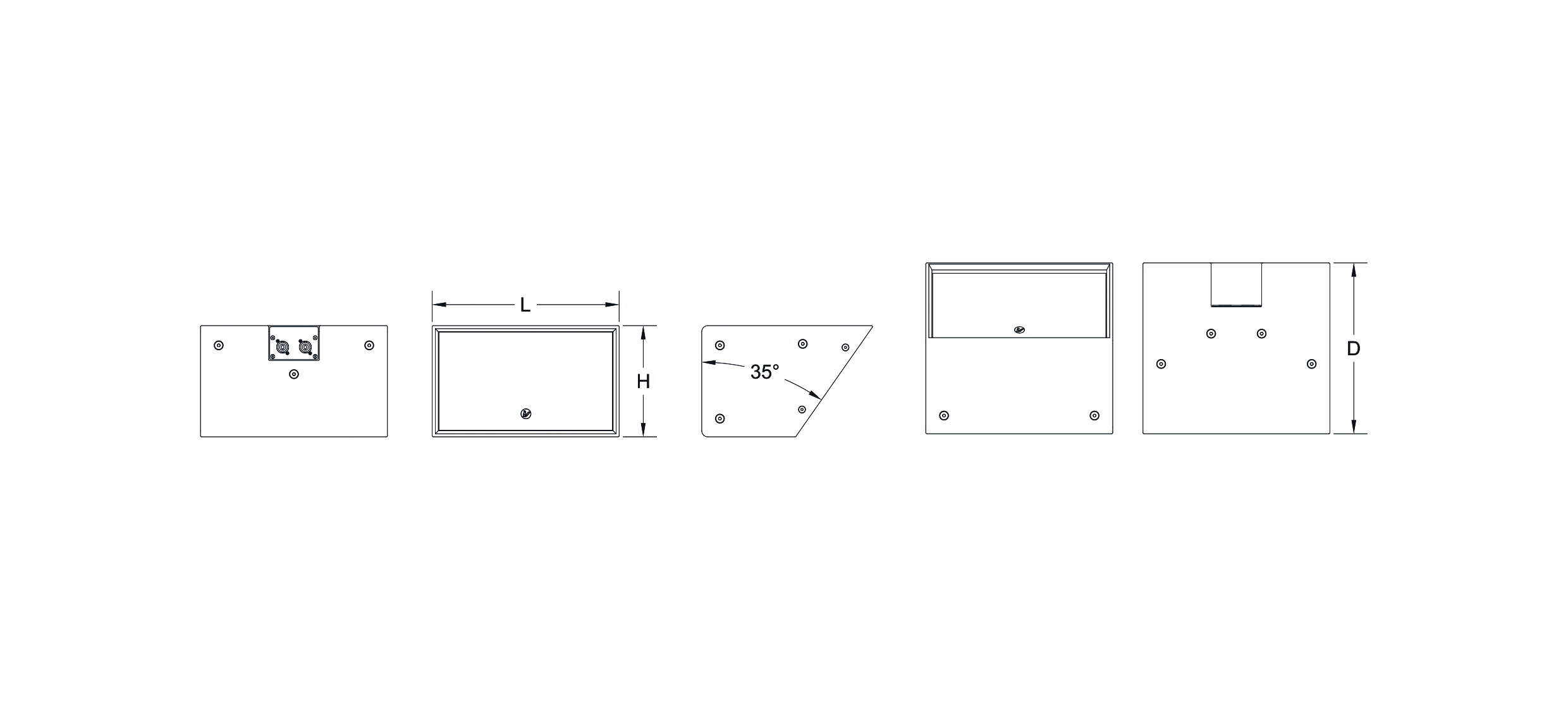

GE series
