K15
The K15 is a high performance passive 2-way loudspeaker bass reflex cabinet and a single 15″ neodymium driver in different high frequency sections for sound applications in a variety of installations. Designed for precise use with 1.4″ outlet neodymium drivers and large angle Mode control. They offer a 120° x 60° rotatable dispersion characteristic frequency response range of 45Hz to 20kHz (processed), and these enclosures can be used as a full-range system or to complement the different subwoofers of the SUB or VS series.
The shell is made of birch plywood with impact-resistant black sand-spot state paint. The front of the cabinet is protected by a solid metal grille. Combined with a variety of rigging, it is suitable for installation in various engineering applications.
Features
Specifications
| Model | K15 |
|---|---|
| Power handling capacity/peak | 1000W(Program)/2000W (peak l0ms) |
| Frequency response | 45~20kHz (-10dB) |
| Maximum SPL | 136dB* |
| Nominal impedance | 8Ω |
| Coverage | 120° x 60° HF-horn, rotatable |
| HF driver | lxl.4″ |
| Voice coil | 3″ |
| LF driver | lxlS”cone driver |
| Voice coil | 3″ |
| Connector | 2x NEUTRIK ® NL4 SPEAKON® parallel INPUT/OUTPUT: +1/-1; LINK: +2/-2 |
| Cabinet | CNC made 15mm birch plywood, Front: coated steel grille, Finish: black grit paint. |
| N.W/G.W | 26kg/33kg |
| Product Dimensions | W417xH687xD500mm |
| Package Dimensions | W605xH525xD806mm |
Remark:
* Peak level at lm under half space conditions using pink noise with crest factor 4.
Verity Audio reserves the rights to make changes in specification without prior notice.

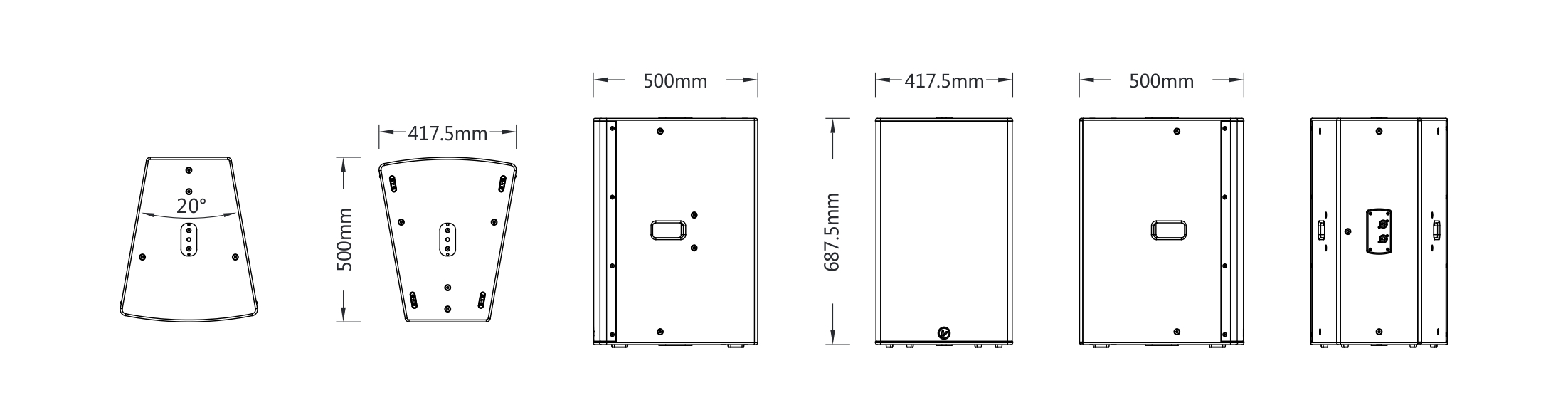

Dimensions
K15 |
