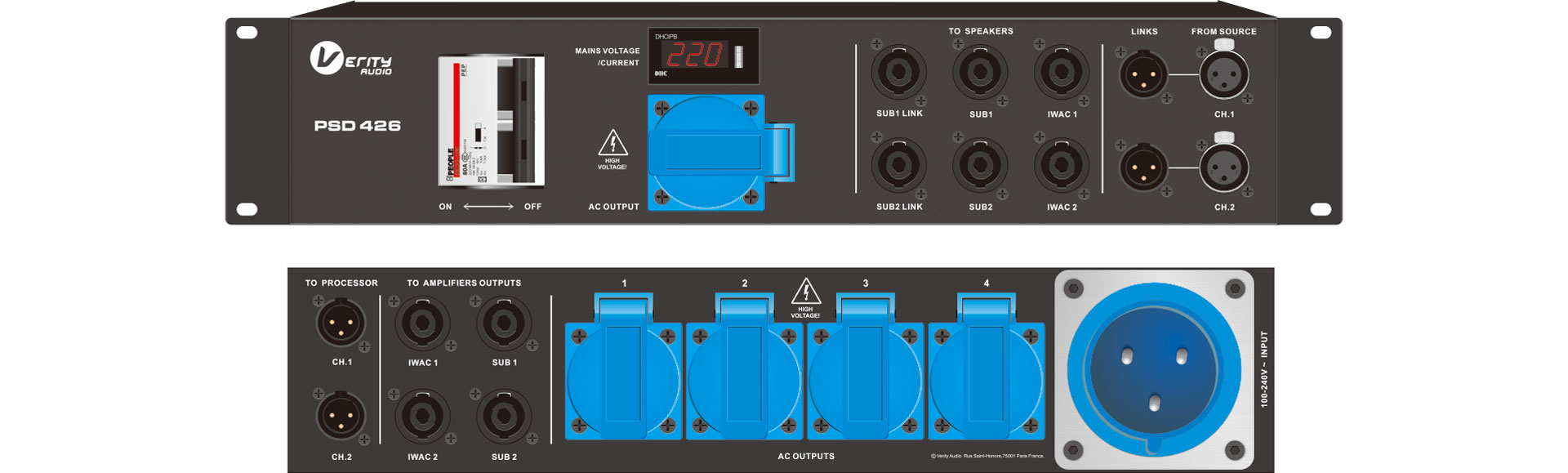

PSD426 Power Signal Distributor
Specifications
| Model | PSD426 Power Signal Distributor |
|---|---|
| Supply Voltage / Current | ~100-240V/32A |
| Power Input Socket | Rear panel 32A European standard blind mounting plug |
| Main Power Switch | Front panel Single phase 12A air switch with over current and short circuit protection |
| Power Out Socket | 1 pc is in front panel, 4pcs are in rear panel,16A European standard waterproof power socket |
| Audio Signal Input/Output | Front panel CH1/CH2,NEUTRIK XLR signal input |
| Power Amplifier Signal Input | 4 pcs are in rear panel, NEUTRIK loudspeaker screw socket,IWAC1/IWAC2;SUB1/SUB2 |
| Power Amplifier Signal Output | 6pcs are in front panel, NEUTRIK loudspeaker screw socket, IWAC1/IWAC2;SUB1/SUB2; SUB1 LINK/SUB2 LINK |
| Voltage / Current Display | In the front panel, Real time display of current AC voltage and AC total current |
| Voltage Display Accuracy | (+ 1% no-load) |
| Working Voltage | 100V~240V ±10% |
| Working Frequency | 50Hz/60HZ ±5% |
| Dimensions/Weight | |
| Product Dimensions (mm) | 483 x 426 x 89 |
| Packing Dimensions (mm) | 595 x 565 x 170 |
| G.W | 8.5kg |
Remarks:
The input and output signals of the front panel and rear panel are straight through and are not handled by the circuit.
