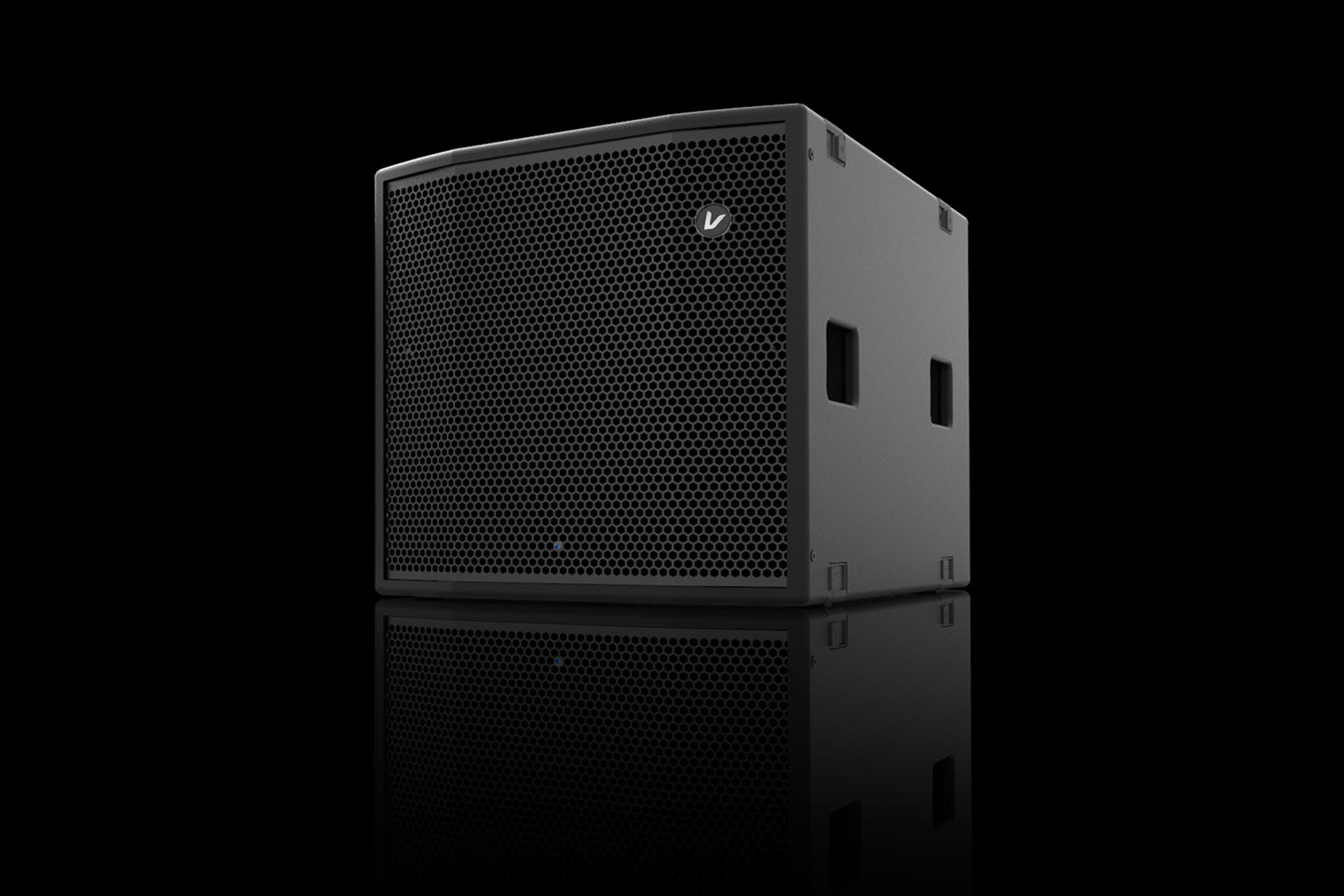

SUB115P
The SUB 115P active subwoofer used the 15″ european customize woofer which is specially used for MUSE P series full frequency loudspeaker.
SUB 115P series active subwoofer can output very deep and warm sound when it near the wall because of special designed of the vent in cabinet.
Features
SUB115P Suitable in spaces like:
- Stadium and arena.
- Multi-functional rooms.
- Auditorium and Theatre.
- High-end Karaoke room.
|
Specifications
| Model |
SUB115P |
| Power |
860W |
| Output circuitry |
Class D |
| Electric power |
100V-240V~ 50/60Hz |
| Frequency range(-10dB) |
35Hz~150Hz |
| Sensitivity |
32dB |
| Short term max SPL* |
133dB |
| LF Drivers |
1x 15″ferrite magnet 8Ω driver |
| Voice coil |
3” |
| connector |
1x Locking IEC power connector; 2x XLR audio input |
| Cabinet |
CNC tongue and groove cabinet wood Environmental surface treatment |
| Product Dimension(mm) |
W500xH500xD700mm |
| Packing Dimension(mm) |
W597xH593xD797mm |
| N.W |
36.5kg |
| G.W |
44.6kg |
| The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products. |
Remark：
* Peak level at 1m under half space conditions using pink noise with crest factor 4.
Verity Audio reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
Dimensions
SUB115P
 |
SUB115P
 |
