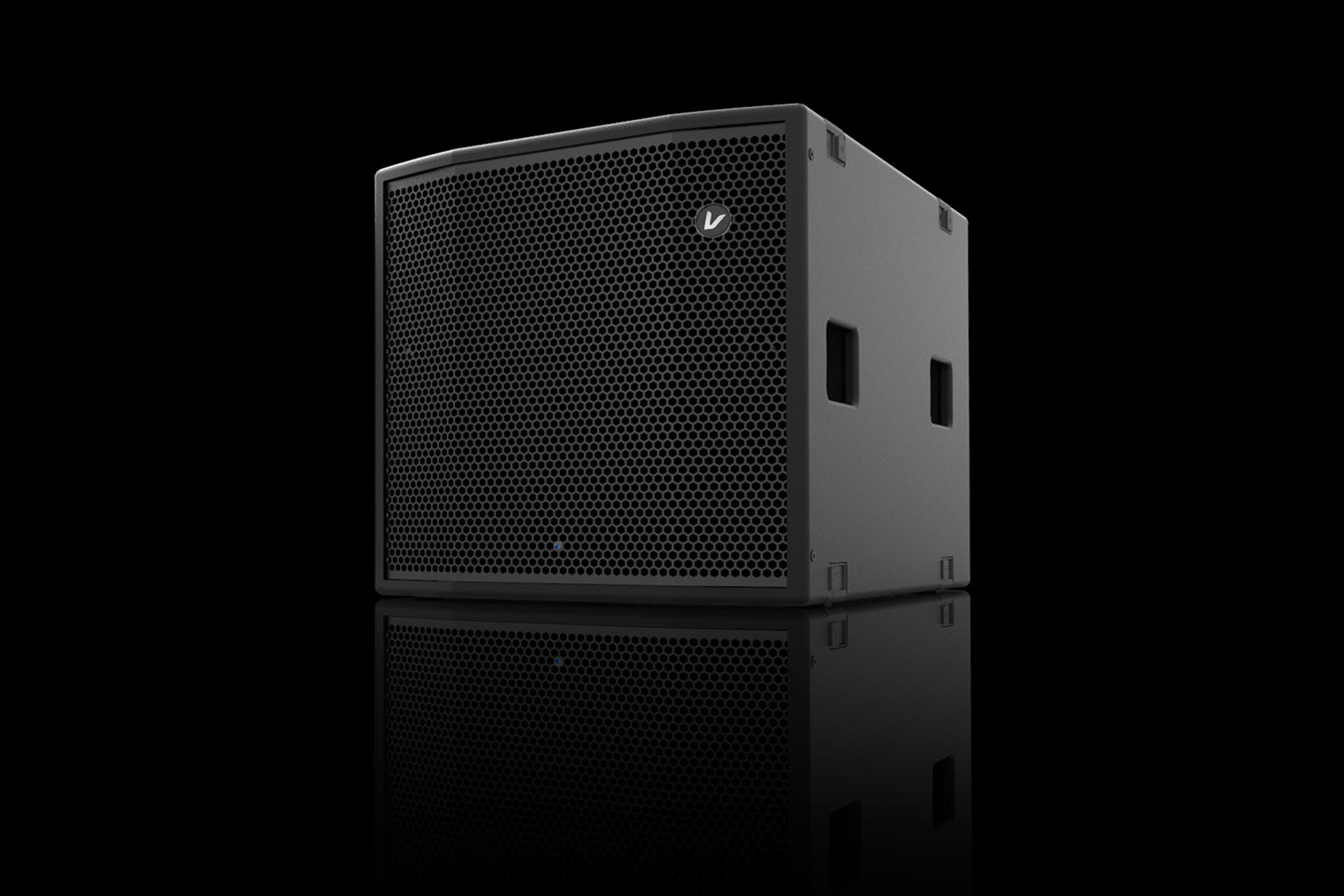

SUB115P
The SUB 115P series active subwoofer used
the 15″ european customize woofer which is
specially used for MUSE P series full frequency
loudspeaker.SUB 115P series active subwoofer can
output very deep and warm soundwhen it near
the wall because of special designed of the vent in cabinet.
Features
SUB115P Suitable in spaces like:
- Stadium and arena.
- Multi-functional rooms.
- Auditorium and Theatre.
- High-end Karaoke room.
|
Specifications
| Model |
SUB115P |
| Input Sensitivity |
1V |
| Max SPL |
123dB |
| *Short term max SPL |
129dB |
| Frequency Range |
40~150Hz(-10dB) |
| Frequency Response |
45~150Hz(-6dB) |
| AC Power Input |
Universal power supply 96~265 VAC,50 to 60Hz |
| Speaker Drivers |
1×15″(V.C:3″) |
| Amplifier |
860W Class D |
| Cooling |
passive |
| connector |
1x Locking IEC power connector;2x XLR audio input |
| Cabinet |
CNC tongue and groove cabinet wood Environmental surface treatment |
| Product Dimension |
500mm x 700mm x 500mm |
| Packing Dimension |
797mm x 597mm x 593mm |
| N.W |
36.5kg |
| G.W |
44.6kg |
Remark：
Verity Audio reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
Dimensions
SUB115P
 |
SUB115P
 |
