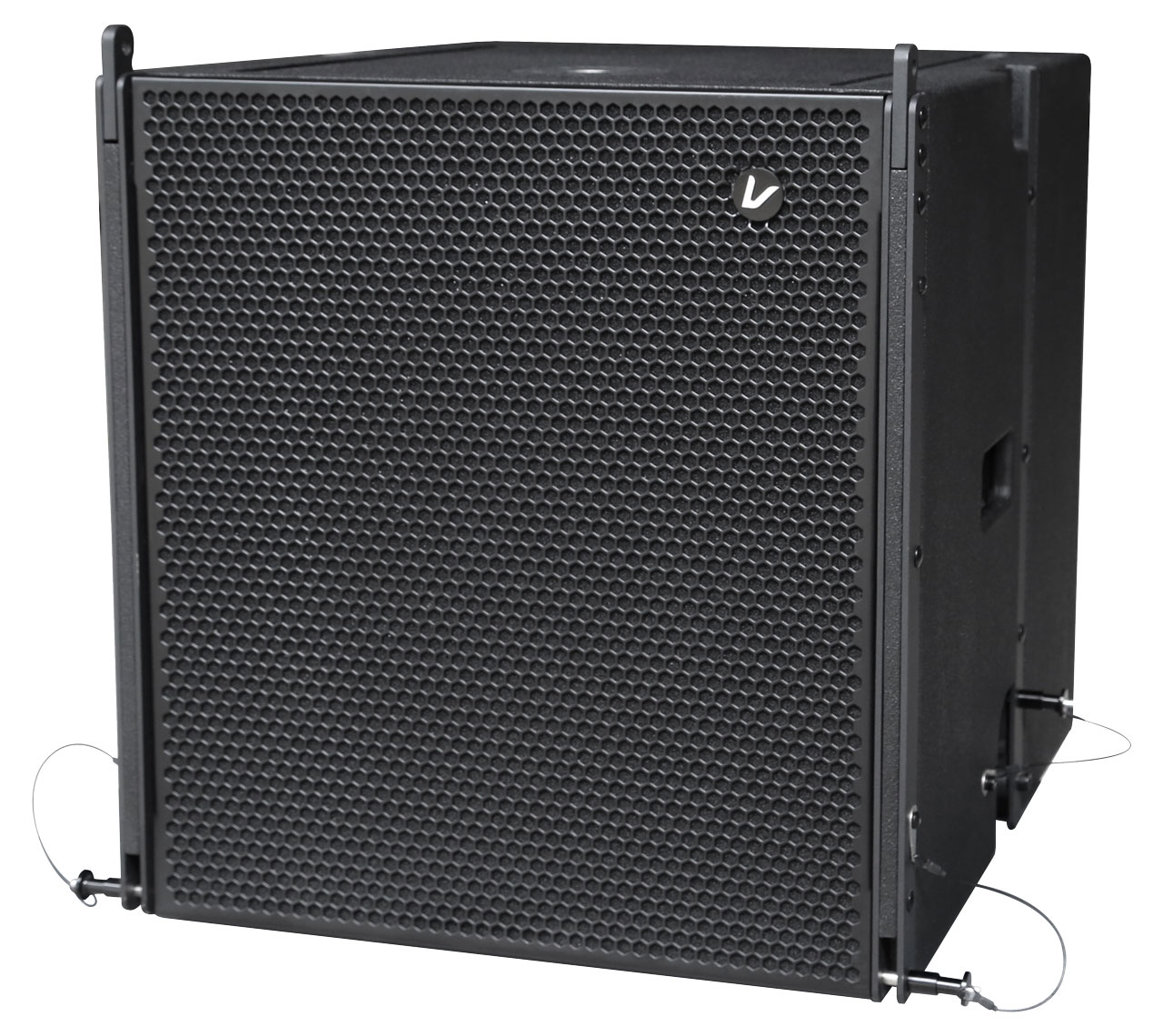

SUB115T


SUB115T


HIGH SPL AND POWER HANDLING
CLEAN AND DEEP
Match with IWAC 210

Applications

SUB115T subwoofer is suitable for bass reinforcement for main PA systems, touring or permanent installations for small to large stages, indoor or outdoor live performances. Suitable in spaces like:

  • Stadium and arena.
  • Multi-functional room.
  • Auditorium and Theater.
  • Touring.
  • Match with IWAC 210.

Specifications

Model SUB115T
Power 2000W (AES)
Program power 4000W
Nominal impedance 4 Ω(Optional 8 Ω configuration)
Frequency Range 35~500 Hz(-10dB)
Sensitivity 93dB
Maximum SPL >136dB(pink noise 1m 1box)
LF driver 15″ Carbon fiber cone ferret driver
Voice coil 6″(152mm)
Connector 2x NEUTRIK® NL4 SPEAKON parallel LF : ±1 HF : ±2
Cabinet CNC made 18mm birch wood sandy wear-resisting environmental polyurea spray paint
Hanging side frame Laser processing steel plate joining together with black paint have 4PCS Ø8 stainless steel
push-pin Angle is not adjustable
Product Dimensions(mm) 499 x 551 x 575
Package Dimensions(mm) 620 x 660 x 685
N.W 52kg
G.W 59kg
The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.

Remark:
Verity Audio reserves the rights to make changes in specification without prior notice.
The final specification is subject to the user’s manual.

Dimensions

SUB115T
SUB115T_Drawing
