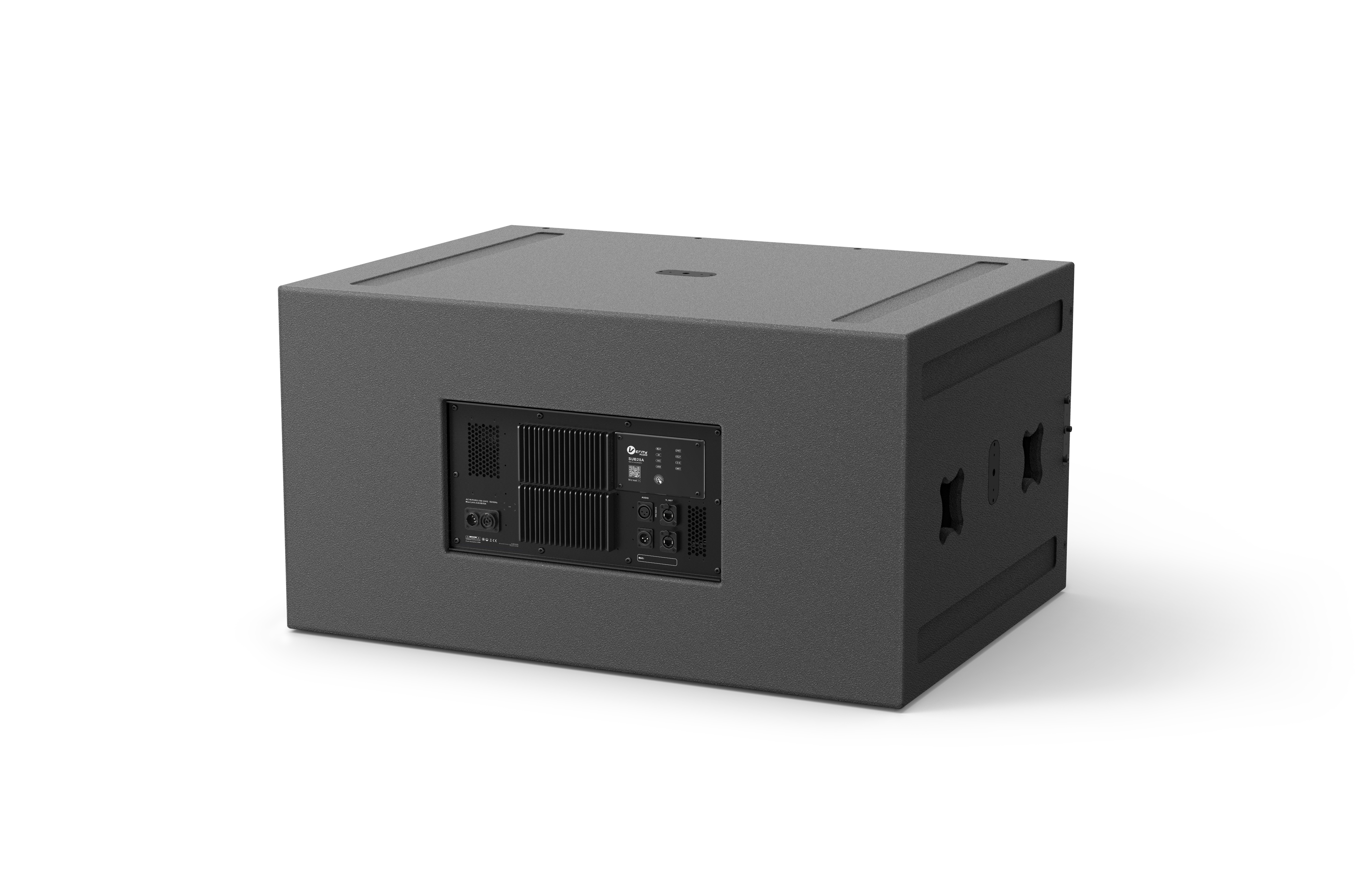

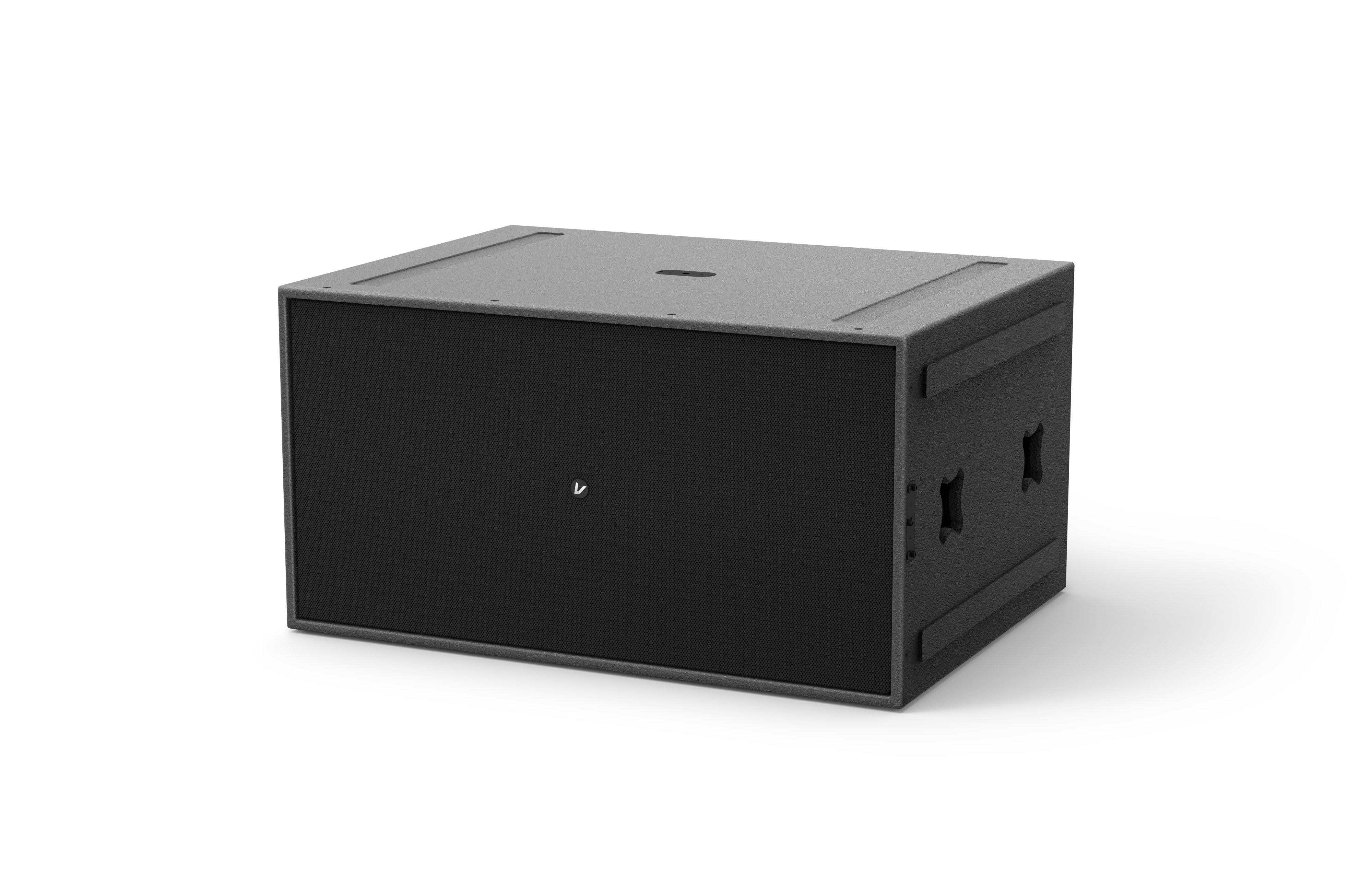

SUB28A
Active Dual 18″ ultra low frequency subwoofer_SPL max＞141dB([100] preset)
_Class D amplifier module with 96~265V universal voltage
_Built-in processor to deliver impressive sound
_Companion Subwoofer to L12A for small and medium touring and medium throw distance reinforcement situation
Features
- ● SUB28A dual 18″active ultra low frequency subwoofer.
- ● The power amplifier module adopts 2x2200W class D, can provide scene presets, capable of providing up to 139dB SPL max (1 m under half space in a single cabinet ).
- ● Premium grade birch plywood cabinet, CNC manufacturing process, black polyurea spray coating, durable and long-lasting. It can be stacked vertically and horizontally.
- ● This product is designed for small and medium-sized tours, as well as reinforcement for medium throwing distances.
Specifications
| Acoustics | SUB28A |
| Frequency response | 32~200Hz |
| Sensitivity | 32dB |
| Coverage | standard or cardioid(processed) |
| Short term SPL max | >141dB([100] preset)* |
| Driver | 2x 18″ Carbon fiber cone ferrite driver (V.C:4″ 8Ω ) |
| Power module | |
| Electric Power | 96~265V AC 50~60 Hz |
| Amplifier | 2x 2200W RMS @8Ω CLASS D |
| Cooling | Forced air cooling |
| Processor | |
| Processor | 24Bit /96k DSP |
| DSP control | TCP/IP(Windows)(Select the preset touch surface on the touch panel) |
| Connect/Cabinet | |
| Connectors | 2x PowerCon TRUE1 (Power); 2x XLR parallel (Audio) |
| Cabinet | Premium grade birch plywood made by CNC; Front: steel grill with coating acoustically neutral 3D fabric; Finish: black polyurea spot spray; Handling: 4 handles/2 M10 threaded inserts/4 ground runners |
| Size/Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.) | |
| Product dimension(mm) | W1065xH560xD780 |
| Net weight | 97kg |
Remark:
* Peak level at 1m under half space conditions using pink noise with crest factor 4.
Verity Audio reserves the rights to make changes in specification without prior notice.

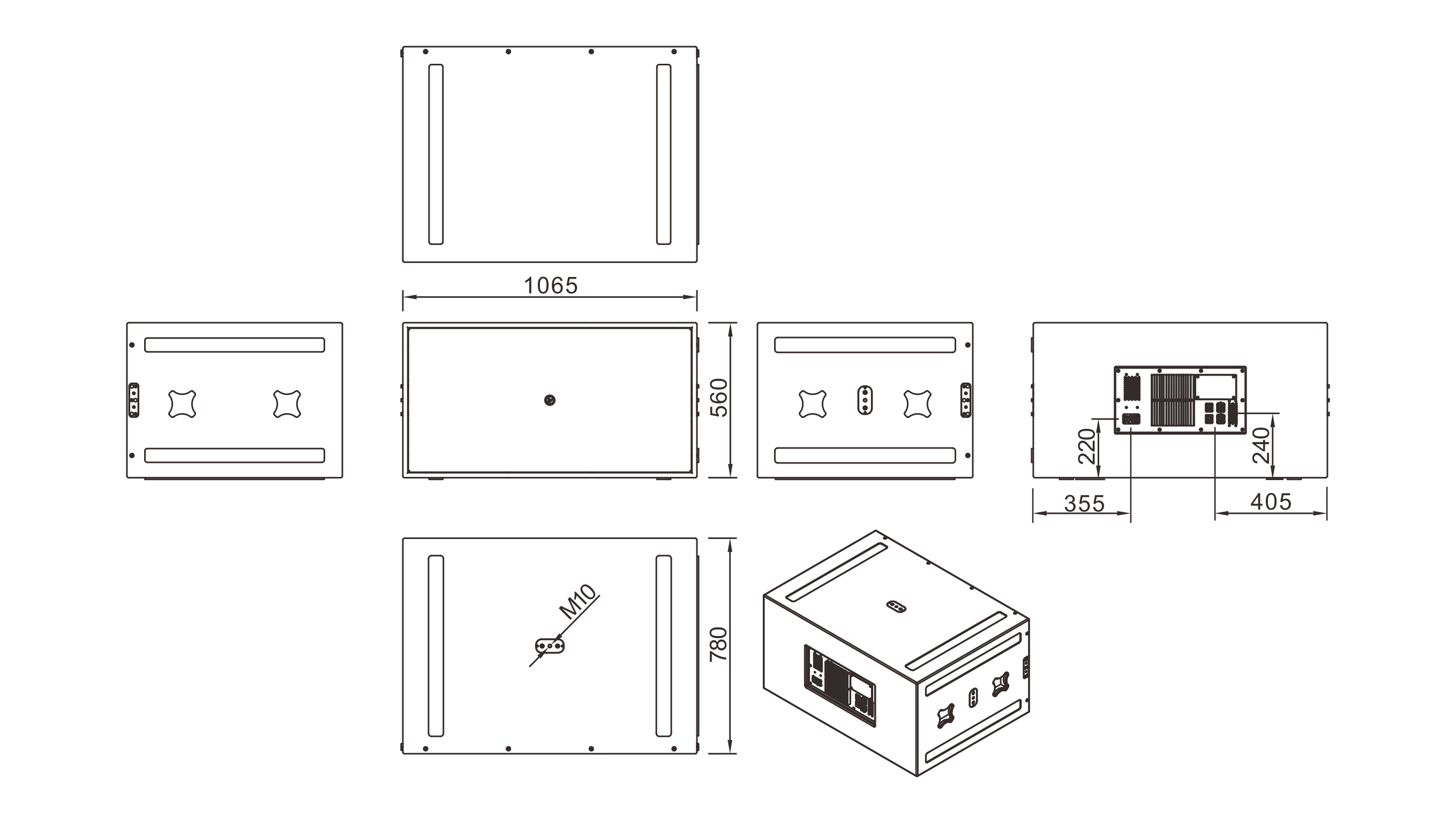

Dimensions
SUB28A |
